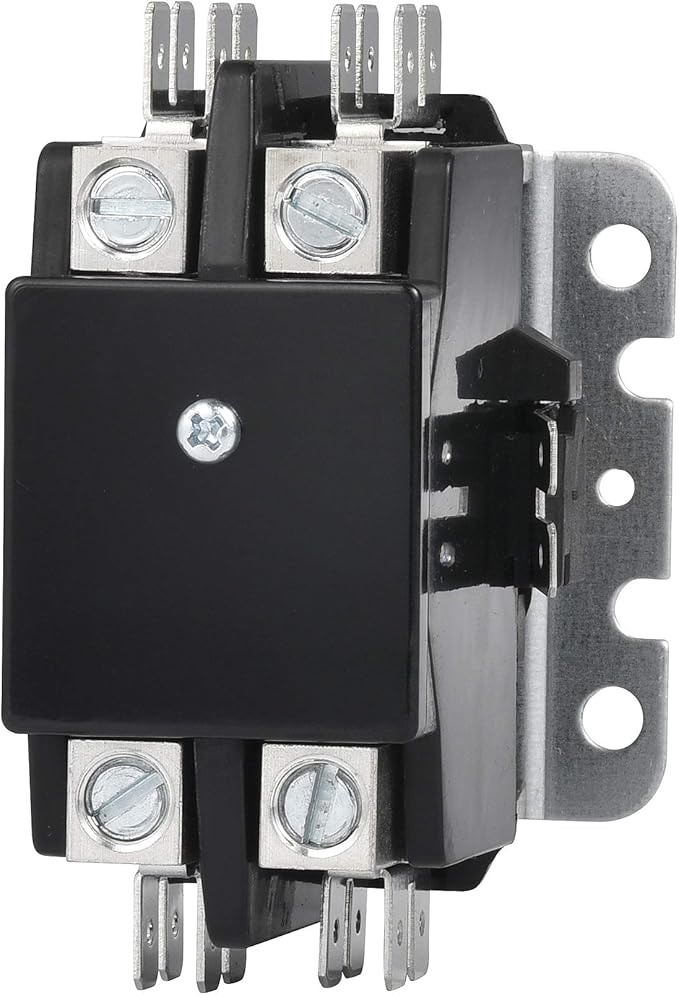

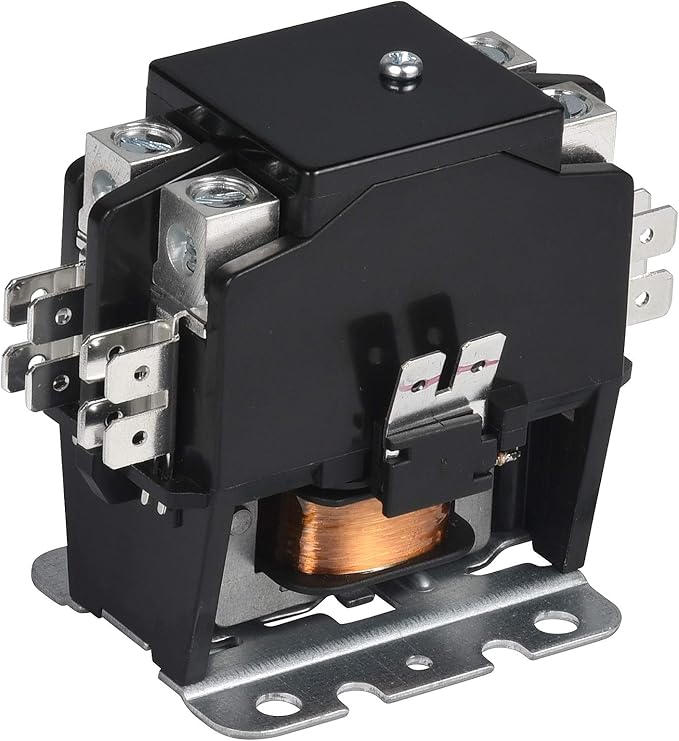

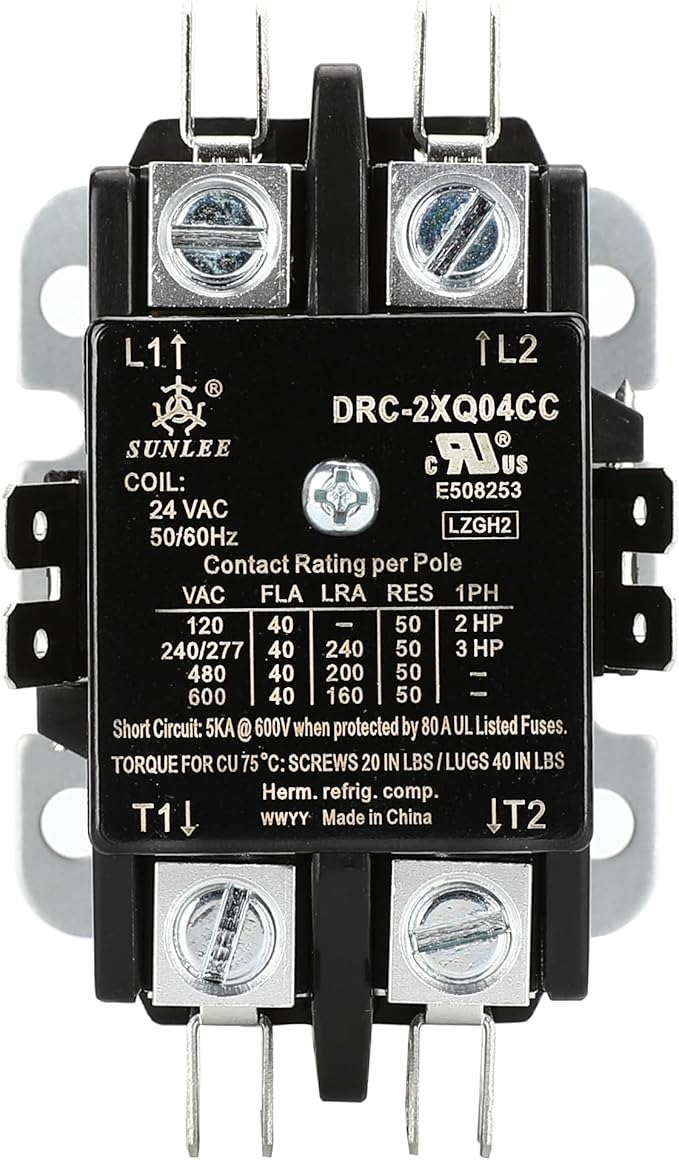

Product Overview
The SunLeeContactor SUNLEE 2 Poles FLA 40 Amp Coil 24 VAC Air Conditioner Condenser Compressor Contactor AC Definite Purpose Contactor Universal Fit UL Recognized A2L Compliant is a Relays product by SunLeeContactor. It features 2 pole 40 fla and 50 amps res load. coil.
Key Features
- 2 Pole 40 FLA and 50 Amps Res Load. Coil Voltage: 24 VAC. Safely replaces both 30A and 40A.
- High-quality Silver contacts resist arcing/pitting. Features Class F 155°C coil insulation more thermal headroom (Superior to most other brands that only use Class B 130°C).
- UL Recognized & A2L Compliant (Industry Standard for Safety). UL File No. E508253. Rigorously tested to ensure US safety standards.
- (BMC) provides strong mechanical strength and electrical insulation to withstand heat, vibration and impact.
- Universal mounting plate and standard terminals.
- Designed to fit most residential central air conditioner brands. Compatible replacement for Carrier, Bryant, Goodman, Lennox, Rheem, Trane, and other standard 1-Pole HVAC contactors with 24V coils.
- FAST, CLEAN INSTALLATION – Standard HVAC mounting footprint
- Engineered for HVAC technicians and serious DIYers. Each contactor is 100% factory-tested.
Why Choose the SunLeeContactor SUNLEE 2 Poles FLA 40 Amp Coil 24 VAC Air Conditioner Condenser Compressor Contactor AC Definite Purpose Contactor Universal Fit UL Recognized A2L Compliant
The SunLeeContactor SUNLEE 2 Poles FLA 40 Amp Coil 24 VAC Air Conditioner Condenser Compressor Contactor AC Definite Purpose Contactor Universal Fit UL Recognized A2L Compliant offers 2 pole 40 fla and 50 amps res and high-quality silver contacts resist arcing/pitting. features class f. These features make the SunLeeContactor SUNLEE 2 Poles FLA 40 Amp Coil 24 VAC Air Conditioner Condenser Compressor Contactor AC Definite Purpose Contactor Universal Fit UL Recognized A2L Compliant a strong option in the Relays category.
Best For
The SunLeeContactor SUNLEE 2 Poles FLA 40 Amp Coil 24 VAC Air Conditioner Condenser Compressor Contactor AC Definite Purpose Contactor Universal Fit UL Recognized A2L Compliant is best suited for everyday relays needs.
Quick Summary
The SunLeeContactor SUNLEE 2 Poles FLA 40 Amp Coil 24 VAC Air Conditioner Condenser Compressor Contactor AC Definite Purpose Contactor Universal Fit UL Recognized A2L Compliant is a Relays product by SunLeeContactor. Connector Type: Screw. Contact Material: Silver. Contact Type: Normally Open. Current Rating: 40 Amps. Mounting Type: DIN Rail Mount. Price: $26.38.
Product Specifications
| Specification | Details |
|---|---|
| Connector Type | Screw |
| Contact Material | Silver |
| Contact Type | Normally Open |
| Current Rating | 40 Amps |
| Mounting Type | DIN Rail Mount |
