Product Overview
The HCDC Screw Mount AC 24-250V 8 Channel Pluggable Side Wiring Terminal Block Power Distribution Fuse Module is a Fuse Blocks product by HCDC. It features operating voltage ac 24 to 250v. maximum total input /.
Key Features
- Operating voltage AC 24 to 250V. Maximum total input / output current 15 Amp.

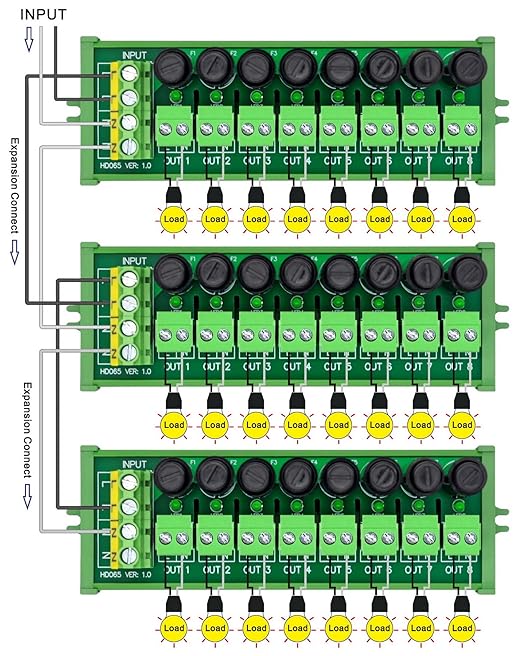

- Input: Maximum current 15 Amp for per position. Double positions L and N polarity terminal, support power supply expansion connect to other modules. Pin pitch 7.62mm/0.3", wire size 26 - 10 AWG, stripping length 8mm, Metric M3 slotted screw.

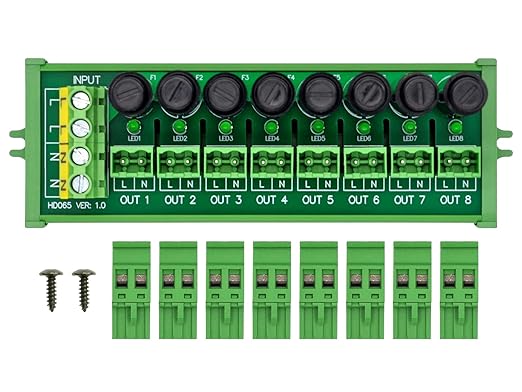

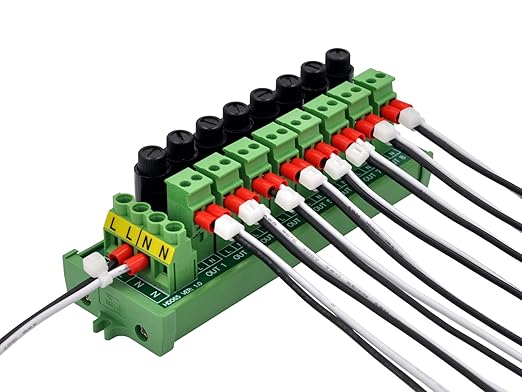

- Output: 10 position pluggable side wiring terminal blocks. Maximum current 4 Amp for per position (factory pre-installed is slow blow 4Amp 5x20mm glass tube fuses). Pin pitch 5.08mm/0.2", wire size 28 - 12 AWG, stripping length 7mm, Metric M2.5 slotted screw.

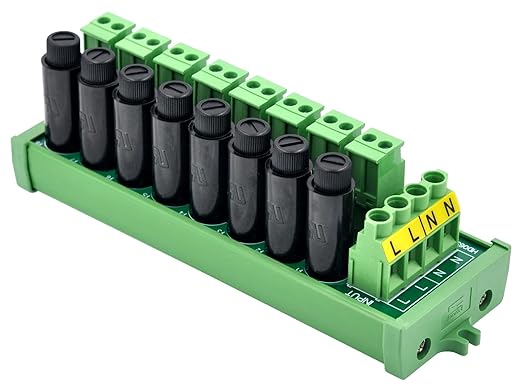

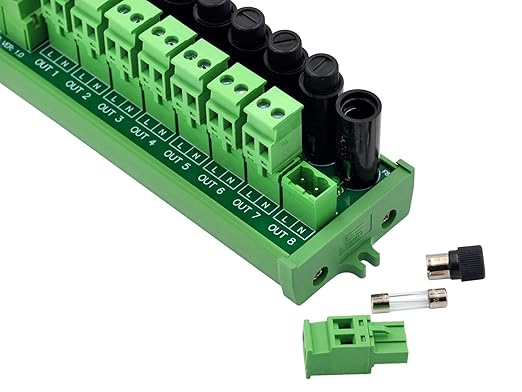

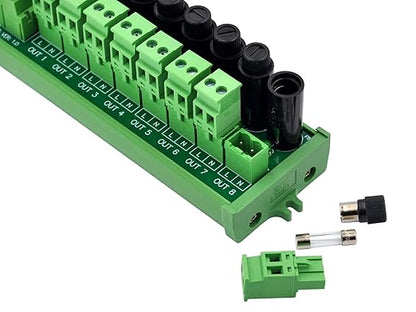

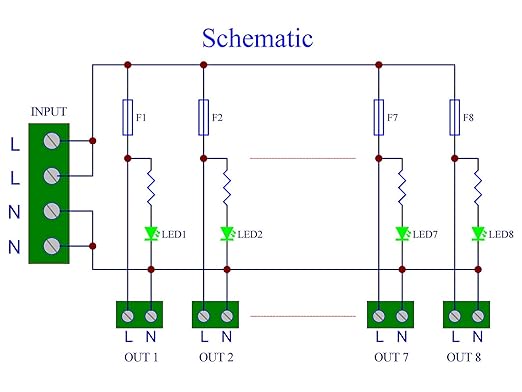

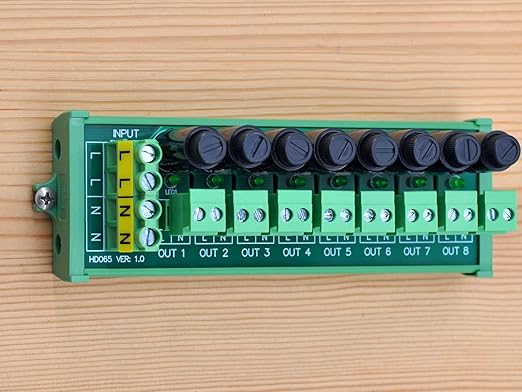

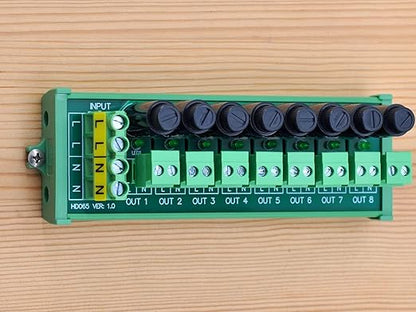

- Fuse holder support 5x20mm tube fuse, the fuse can be replaced very easily. Each output channel has a green LED indicator, when the fuse is blown or pulled out, the LED indicator will be off.

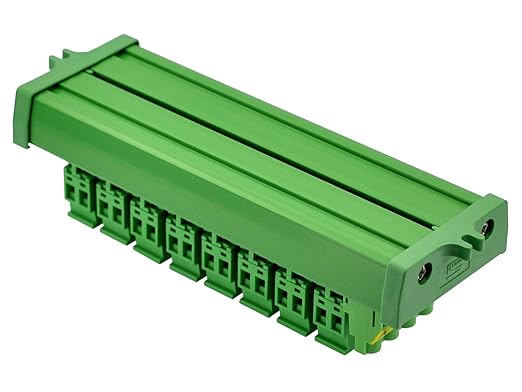

- High quality fireproof nylon material mount carrier, included two M3 x 10mm wood screws, you can easily mount it on a wooden board. FR-4 fiberglass dual copper layers PCB. UL CE CQC certified terminal blocks, UL 94-V0 certified PCB, and UL CE certified screw mount carrier.
Why Choose the HCDC Screw Mount AC 24-250V 8 Channel Pluggable Side Wiring Terminal Block Power Distribution Fuse Module
The HCDC Screw Mount AC 24-250V 8 Channel Pluggable Side Wiring Terminal Block Power Distribution Fuse Module offers operating voltage ac 24 to 250v. maximum total and input: maximum current 15 amp for per position.. These features make the HCDC Screw Mount AC 24-250V 8 Channel Pluggable Side Wiring Terminal Block Power Distribution Fuse Module a strong option in the Fuse Blocks category.
Best For
The HCDC Screw Mount AC 24-250V 8 Channel Pluggable Side Wiring Terminal Block Power Distribution Fuse Module is best suited for everyday fuse blocks needs.
Quick Summary
The HCDC Screw Mount AC 24-250V 8 Channel Pluggable Side Wiring Terminal Block Power Distribution Fuse Module is a Fuse Blocks product by HCDC. Current Rating: 15 Amps. Item Pitch: 7.62 Millimeters. Gauge: 10.0. Connector Type: Screw. Number Of Contacts: 8. Price: $49.5.
Product Specifications
| Specification | Details |
|---|---|
| Current Rating | 15 Amps |
| Item Pitch | 7.62 Millimeters |
| Gauge | 10.0 |
| Connector Type | Screw |
| Number Of Contacts | 8 |
| Mounting Type | PCB Mount |
| Material | Nylon |
| Brand | HCDC |
| Voltage | 250 Volts |
| Number Of Poles | 10 |
