Product Overview
The RECOIL BBPG5 Busbar Positive and Negative 2 x 5/16” Studs and 8 x #8 Screw Terminals Power Distribution Block with Ring Terminals is a Vehicle Electronics Accessories product. It features ten connections with 2 x 5/16" stainless steel studs and.
Key Features

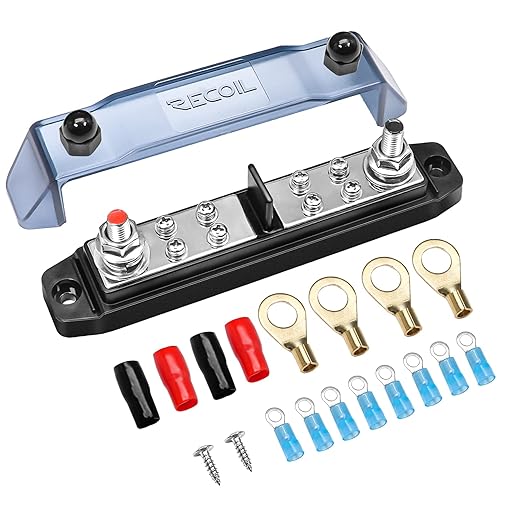

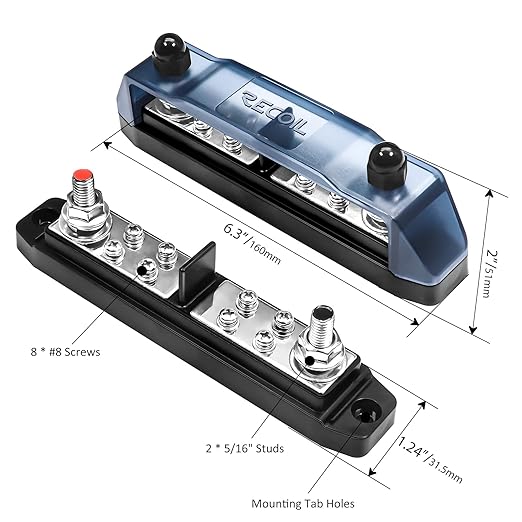

- Ten connections with 2 x 5/16" stainless steel studs and 8 x #8 stainless steel screws. Comes with 2 x 8AWG 5/16”, 2 x 10AWG 5/16”and 8 x #8 insulated ring terminals.

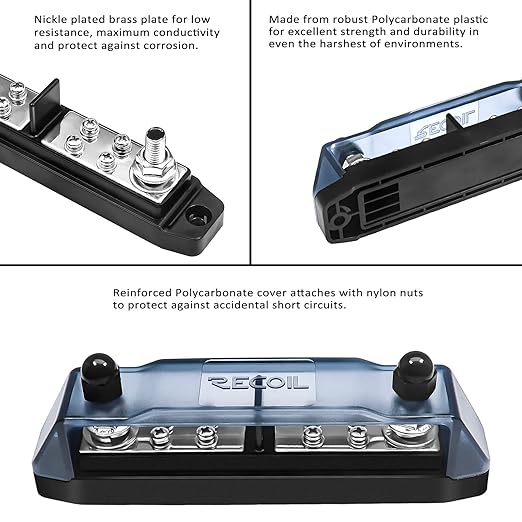

- Reinforced Polycarbonate cover attaches with nylon nuts to protect against accidental short circuits.

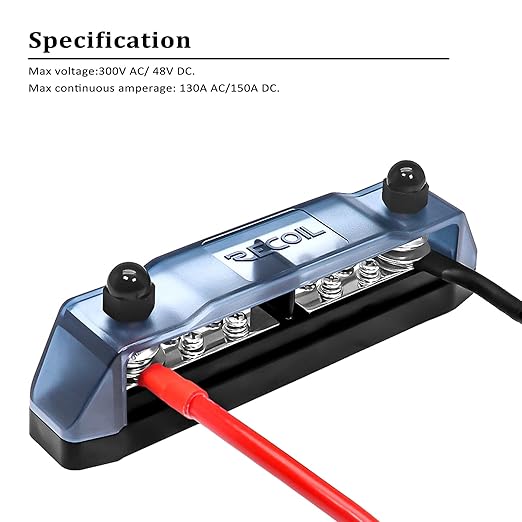

- Max voltage:300V AC/ 48V DC. Max continuous amperage: 130A AC/150A DC.

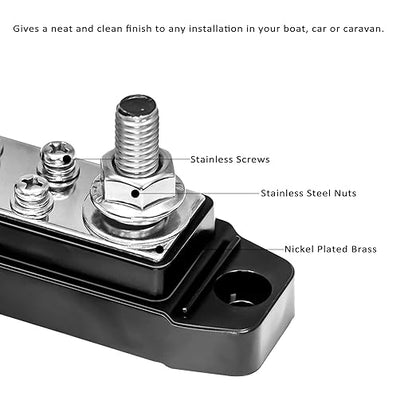

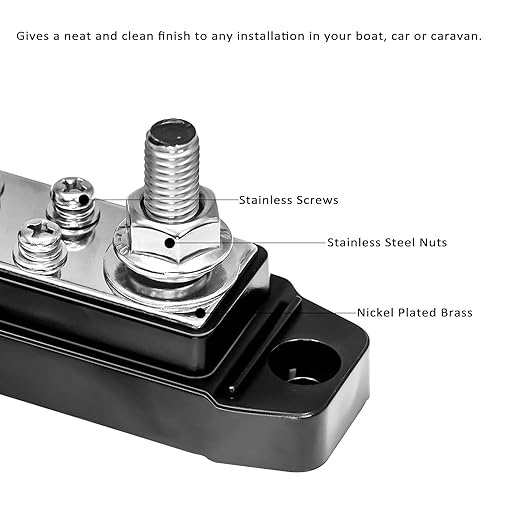

- Nickle plated brass plate for low resistance, maximum conductivity and protect against corrosion. Made from robust Polycarbonate plastic for excellent strength and durability in even the harshest of environments.
- Gives a neat and clean finish to any installation in your boat, car or caravan.
Why Choose the RECOIL BBPG5 Busbar Positive and Negative 2 x 5/16” Studs and 8 x #8 Screw Terminals Power Distribution Block with Ring Terminals
The RECOIL BBPG5 Busbar Positive and Negative 2 x 5/16” Studs and 8 x #8 Screw Terminals Power Distribution Block with Ring Terminals offers ten connections with 2 x 5/16" stainless steel and reinforced polycarbonate cover attaches with nylon nuts to. These features make the RECOIL BBPG5 Busbar Positive and Negative 2 x 5/16” Studs and 8 x #8 Screw Terminals Power Distribution Block with Ring Terminals a strong option in the Vehicle Electronics Accessories category.
Best For
The RECOIL BBPG5 Busbar Positive and Negative 2 x 5/16” Studs and 8 x #8 Screw Terminals Power Distribution Block with Ring Terminals is best suited for everyday vehicle electronics accessories needs.
Quick Summary
The RECOIL BBPG5 Busbar Positive and Negative 2 x 5/16” Studs and 8 x #8 Screw Terminals Power Distribution Block with Ring Terminals is a Vehicle Electronics Accessories product by Recoil. Current Rating: 150 Amps. Gauge: 8.0. Connector Type: Screw. Number Of Contacts: 10. Mounting Type: Panel Mount. Price: $29.68.
Product Specifications
| Specification | Details |
|---|---|
| Current Rating | 150 Amps |
| Gauge | 8.0 |
| Connector Type | Screw |
| Number Of Contacts | 10 |
| Mounting Type | Panel Mount |
| Material | Plastic, Polycarbonate (PC) |
| Color | black |
| Brand | RECOIL |
| Voltage | 300 Volts |
| Number Of Poles | 10 |
