EPEVER 60A MPPT Solar Charge Controller 12V/24V/36V/48V DC Automatically Identifying System Voltage Max.PV 150V Solar Panel Regulator (Tracer 6415 an)

Product Details

• Color: 60A 150V
• Item Weight: 5.4 kg
• Voltage: 24 volts
• Number of Items: 1
• Unit Count: 1 Count
• Part Number: Tracer6415AN
• Model: Tracer6415AN
• Display Type: LCD
• Item Dimensions L x W x H: 13.38"L x 9.29"W x 4.68"H

About this item

• MPPT solar charge controller advanced MPPT technology & ultra-fast tracking speed, with tracking efficiency no less than 99.5%. High quality & low failure rate components of ST and Infineon to ensure the product's life.
• With the adaptive three-stage charging mode based on digital control circuit, Tracer AN series controllers can effectively prolong the life-cycle of battery and significantly improve the system performance. The load, utility or generator auto-control relays make it easy to compose the hybrid power system.

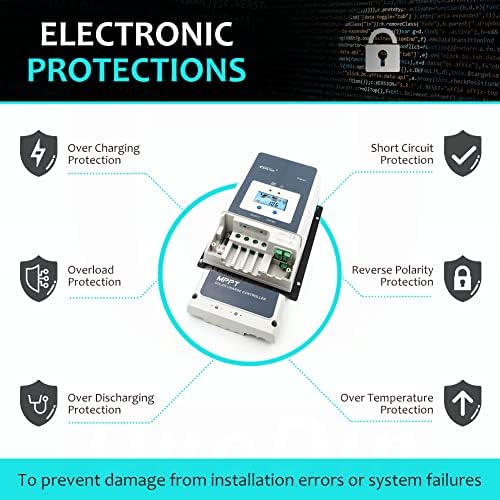

• All-around electronic protections, including overcharging, over discharging, and PV reverse polarity protection, effectively ensure the safer and more reliable operation of the solar system for a longer service time. It have battery temperature compensation function, real-time energy recording and statistical function, automatic over-temperature power reduction function. Hundred percent full load operation in working environment temperature range within charging & discharging.
• Wide range of maximum power point operating voltage, improved photovoltaic module utilization, rated charging power & charging current double automatic limiting function. Support 4 charging options: Sealed, Gel, Flooded and User.

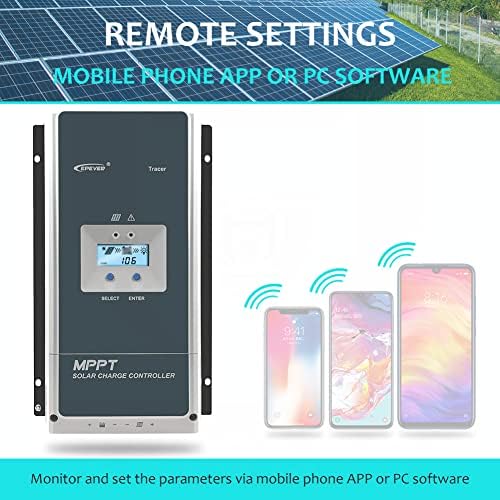

• The isolated RS485 interface with standard MODBUS communication protocol and 5V power supply makes it easy for customer to expand the application, it support up to 8 charging in parallel to expand system and meet with different monitoring requirements, so that can be widely used for various applications, e.g. solar RV, household system and field monitoring etc.
