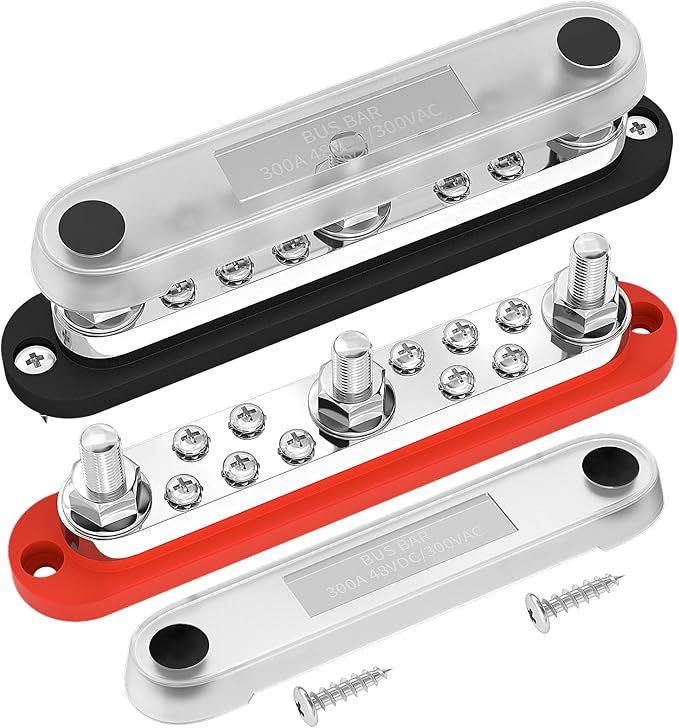

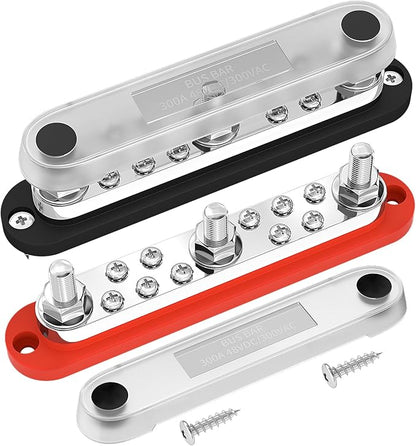

Product Overview
The DAIERTEK 300A Copper Bus Bar 12V is a Connecting Blocks product. It features 【300a heavy duty】: 12v bus bar terminal block can handle.
Key Features
- 【300A Heavy Duty】: 12v bus bar terminal block can handle Max 300A continuous amperage at Max 300V AC or 48V DC voltage, red is positive bus bar and black is ground bus bar.
- 【Product Features】: Nickel plated copper plate has better electrical conductivity, strong corrosion resistance and longer service life.

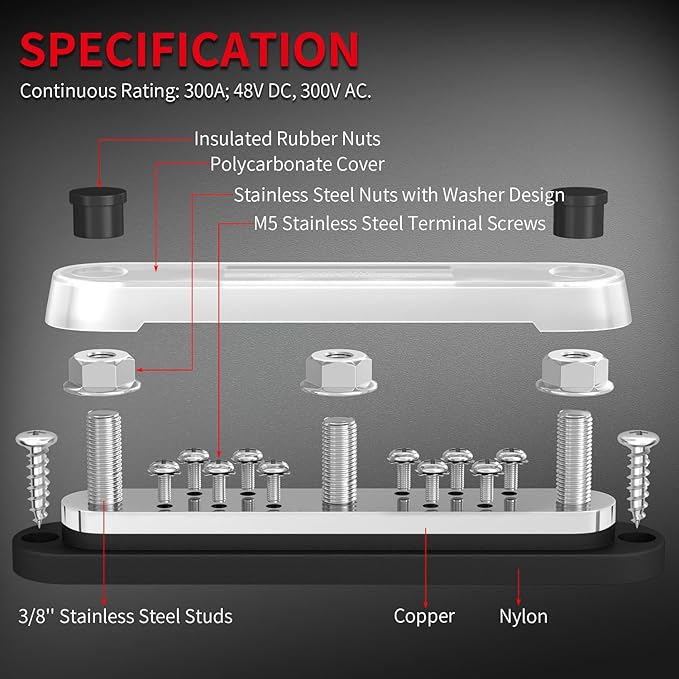

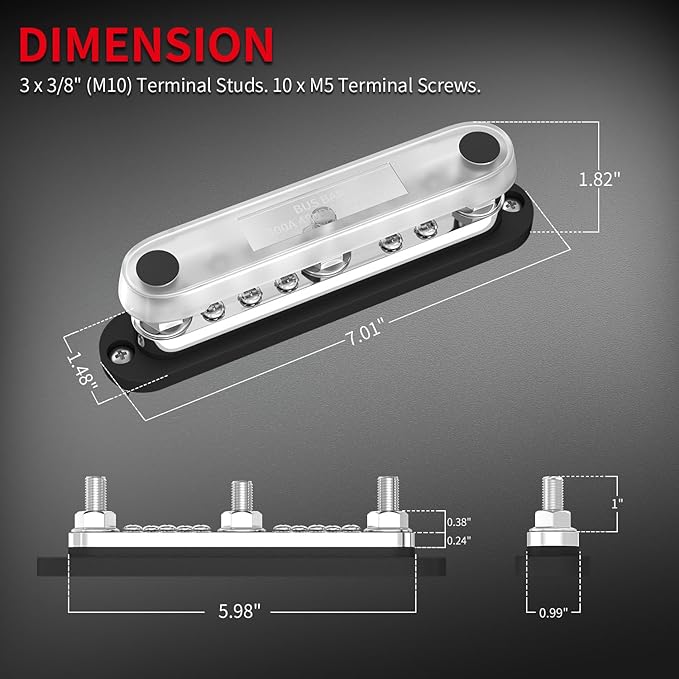

- 【Parameters】: A pair of 12V power distribution block（red & black）with terminal screw: 10 x M5 , terminal stud: 3 x 3/8”(M10).
- 【Protect Cover】: The exposed area of two side of this 12v power distribution block cover allows 180°wire lug installation, can meet a variety kinds of install methods of end terminals.
- 【Wide Application】: This 300A bus bar will better performance in high current system. Suitable for automobiles, trucks, ships, boats and yachts. The package includes a positive pole and a grounding distribution block.
Why Choose the DAIERTEK 300A Copper Bus Bar 12V
The DAIERTEK 300A Copper Bus Bar 12V offers 【300a heavy duty】: 12v bus bar terminal block and 【product features】: nickel plated copper plate has better. These features make the DAIERTEK 300A Copper Bus Bar 12V a strong option in the Connecting Blocks category.
Best For
The DAIERTEK 300A Copper Bus Bar 12V is best suited for: automobiles.
Quick Summary
The DAIERTEK 300A Copper Bus Bar 12V is a Connecting Blocks product by DaierTek. Current Rating: 300 Amps. Connector Type: Screw. Number Of Contacts: 2. Mounting Type: Surface Mount. Material: Copper,Metal,Nickel. Price: $51.13.
Product Specifications
| Specification | Details |
|---|---|
| Current Rating | 300 Amps |
| Connector Type | Screw |
| Number Of Contacts | 2 |
| Mounting Type | Surface Mount |
| Material | Copper,Metal,Nickel |
| Color | BB300-T3M10S10-C-RB |
| Brand | DAIERTEK |
| Voltage | 12 Volts |
| Number Of Poles | 2 |
